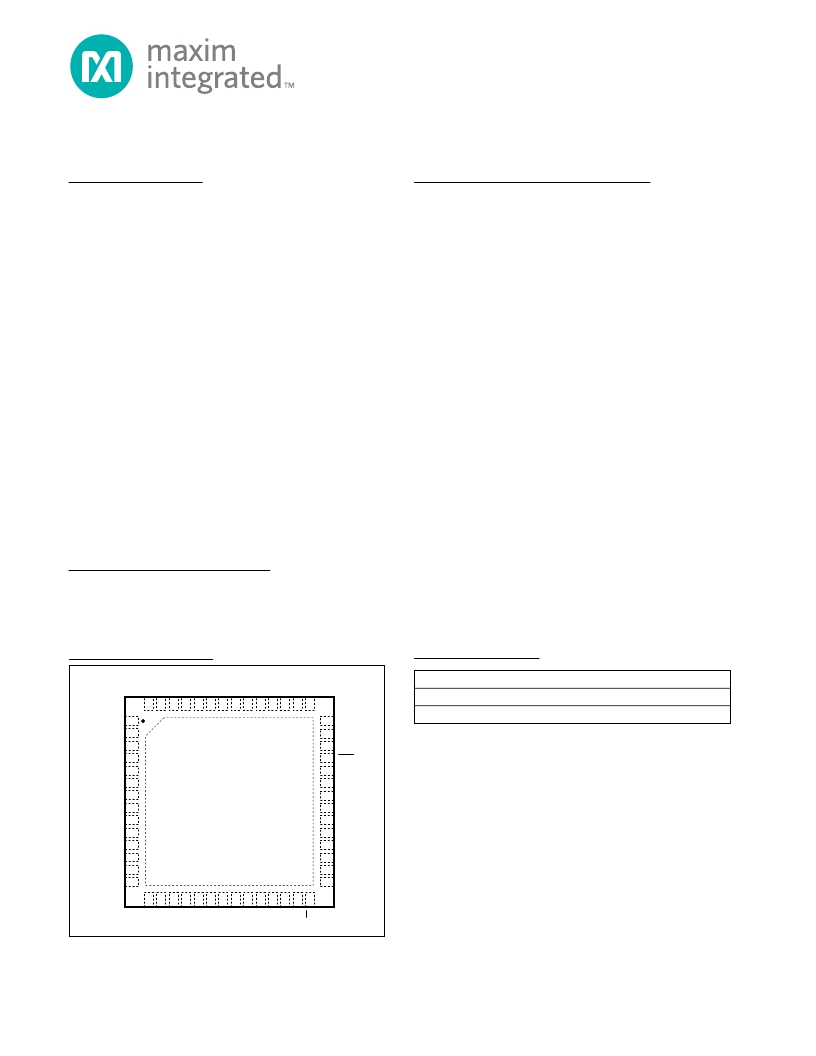

EVALUATION KIT AVAILABLE

AVAILAB

MAX2828/MAX2829

Single-/Dual-Band 802.11a/b/g

World-Band Transceiver ICs

General Description

The MAX2828/MAX2829 single-chip, RF transceiver ICs

are designed specifically for OFDM 802.11 WLAN appli-

cations. The MAX2828 is designed for single-band

802.11a applications covering world-band frequencies

of 4.9GHz to 5.875GHz. The MAX2829 is designed for

dual-band 802.11a/g applications covering world-bands

of 2.4GHz to 2.5GHz and 4.9GHz to 5.875GHz. The ICs

include all circuitry required to implement the RF trans-

ceiver function, providing a fully integrated receive path,

transmit path, VCO, frequency synthesizer, and base-

band/control interface. Only the PA, RF switches, RF

bandpass filters (BPF), RF baluns, and a small number

of passive components are needed to form the com-

plete RF front-end solution.

Each IC completely eliminates the need for external SAW

filters by implementing on-chip monolithic filters for both

the receiver and transmitter. The baseband filtering and

the Rx/Tx signal paths are optimized to meet the

802.11a/g IEEE standards and cover the full range of the

required data rates (6, 9, 12, 18, 24, 36, 48, and 54Mbps

for OFDM; 1, 2, 5.5, and 11Mbps for CCK/DSSS), at

receiver sensitivity levels up to 10dB better than 802.11a/g

standards. The MAX2828/MAX2829 transceivers are avail-

able in the small 56-pin, exposed paddle thin QFN pack-

age.

Applications

Single-/Dual-Band 802.11a/b/g Radios

4.9GHz Public Safety Radios

2.4GHz/5GHz MIMO and Smart Antenna Systems

Functional Diagrams

Pin Configurations

Features

o World-Band Operation

MAX2828: 4.9GHz to 5.875GHz (802.11a)

MAX2829: 2.4GHz to 2.5GHz and 4.9GHz to

5.875GHz (802.11a/b/g)

o Best-In-Class Transceiver Performance

-75dBm Rx Sensitivity at 54Mbps (802.11g)

-46dB (802.11g)/-51dB (802.11a) Tx Sideband

Suppression

1.5% (802.11g) and 2% (802.11a) Tx EVM

-100dBc/Hz (802.11g)/-95dBc/Hz (802.11a)

LO Phase Noise

Programmable Baseband Lowpass Filters

Integrated PLL with 3-Wire Serial Interface

93dB (802.11g)/97dB (802.11a) Receiver Gain-

Control Range

200ns Rx I/Q DC Settling

60dB Dynamic Range Rx RSSI

30dB Tx Power-Control Range

Tx/Rx I/Q Error Detection

I/Q Analog Baseband Interface for Tx and Rx

Digital Mode Selection (Tx, Rx, Standby, and

Power Down)

Supports Both Serial and Parallel Gain Control

o MIMO and Smart Antenna Compatibility

Coherent LO Phase Among Multiple

Transceivers

o Support 40MHz Channel Bandwidth (Turbo Mode)

o Single +2.7V to +3.6V Supply

o 1μA Low-Power Shutdown Mode

o Small 56-Pin TQFN Package (8mm x 8mm)

Ordering Information

TOP VIEW

56 55 54 53 52 51 50 49 48 47 46 45 44 43

PART

MAX2828 ETN

TEMP RANGE

-40°C to +85°C

PIN-PACKAGE

56 TQFN-EP* (T5688-2)

42 RXHP

MAX2829 ETN

-40°C to +85°C

56 TQFN-EP* (T5688-2)

V CC

N.C.

GND

RXRFH

GND

41 RXENA

40 RSSI

39 SHDN

38 V CC

37 BYPASS

36 TUNE

* EP = Exposed paddle.

TXRFH+

TXRFH-

V CC

N.C.

TXENA

PABIAS

MAX2828

35 GND

34 GND

33 CPOUT

32 GND

31 V CC

30 ROSC

29 LD

15 16 17 18 19 20 21 22 23 24 25 26 27 28

Pin Configurations appear at end of data sheet.

Functional Diagrams continued at end of data sheet.

Pin Configurations continued at end of data sheet.

UCSP is a trademark of Maxim Integrated Products, Inc.

For pricing, delivery, and ordering information, please contact Maxim Direct

at 1-888-629-4642, or visit Maxim’s website at www.maxim integrated .com.

19-3455; Rev 0; 10/04
